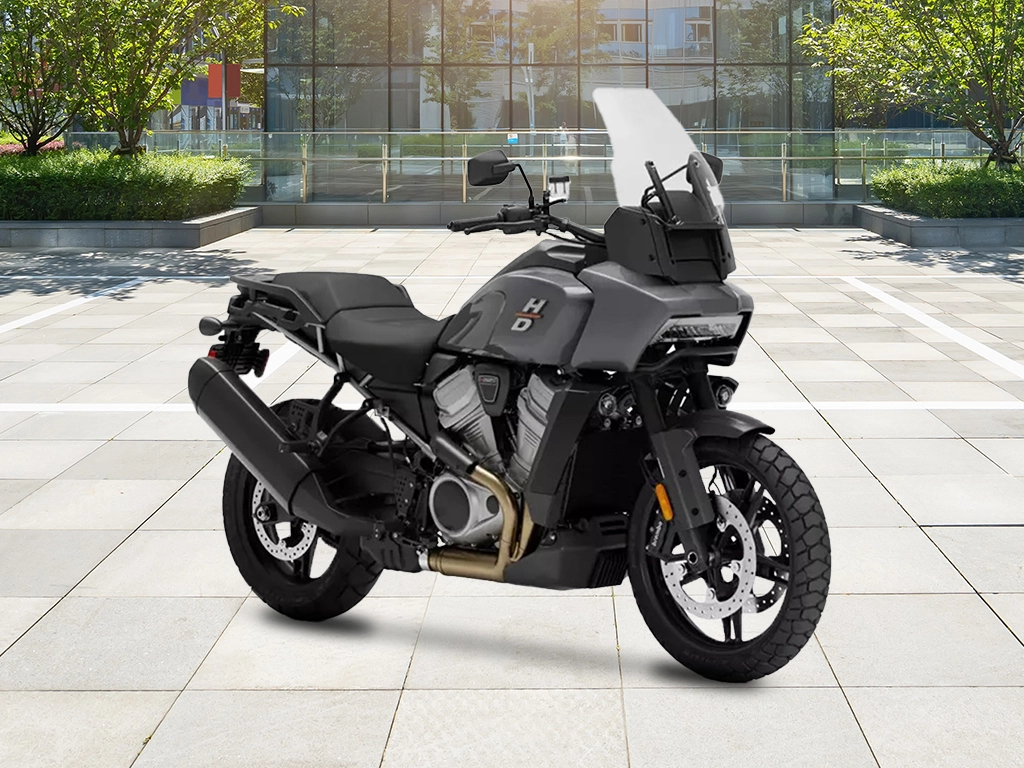

Harley Davidson Pan America 1250 STD
EMI starts at
₹62,090 /month*
On Road Price
₹ 21.09 L - 24.23 L
Get sleek and powerful on Harley Davidson Pan America 1250! Apply for a two wheeler loan on Drivio now.
Select Variant
Pan America 1250 STD
Check your Eligibility
Find out if you’re eligible for bike finance in minutes, with no impact on your credit score.
Check NowHarley Davidson Pan America 1250 Specifications
Key Specifications
- Mileage
- 18.1 kmpl
- Fuel Tank Capacity
- 21.2 L
- Seat Height
- 869 mm
- Number of Gears
- 6 Speed
- Max Power
- 152 PS @ 8750 rpm
- Displacement
- 1252 cc
- Front Brake
- Disc
- Rear Brake
- Disc
- Body Type
- Sports
- Torque
- 128 Nm @ 6750 rpm
- Transmission
- Manual
Engine and Transmission
- Transmission
- Manual
- Engine Type
- Revolution™ Max 1250
- Displacement
- 1252 cc
- Peak Power
- 152 PS @ 8750 rpm
- Max Torque
- 128 Nm @ 6750 rpm
- No of Cylinders
- 2
- Cooling System
- Liquid Cooled
- Valve per Cylinder
- 4
- Starting
- Self Start Only
- Fuel Supply
- Fuel Injection
- Clutch
- Mechanical, 8 plate wet, assist & slip, 1090N
- Gear Box
- 6 Speed
- Bore
- 105 mm
- Stroke
- 72.3 mm
- Emission Type
- bs6
- Mileage
- 18.1 kmpl
Features
- USB Charging Port
- Yes
- Speedometer
- Digital
- Odometer
- Digital
- Seat Type
- Split
- Passenger Footrest
- Yes
- Fuel Gauge
- Digital
- Display
- 6.8 inch TFT
- Additional Features
- DRAG-TORQUE SLIP CONTROL SYSTEM, HILL HOLD CONTROL
Dimensions and Capacity
- Body Type
- Sports
- Length
- 2270 mm
- Fuel Capacity
- 21.2 L
- Saddle Height
- 869 mm
- Ground Clearance
- 210 mm
- Wheelbase
- 1580 mm
- Kerb Weight
- 245 kg
Electricals
- Head Light
- LED
- Tail Light
- LED
- Turn Signal Lamp
- LED
Tyres and Brakes
- Front Brake Diameter
- 320 mm
- Rear Brake Diameter
- 280 mm
- Front Brake
- Disc
- Rear Brake
- Disc
- Tyre Size
- Front: 120/70R19,, Rear: 170/60R17
- Wheel Size
- Front: 482.6 mm,, Rear: 431.8 mm
- Wheels Type
- Cast Aluminum
- Tubeless Tyre
- Tubeless
Motor, Battery and Suspension
- Drive Type
- Chain Drive
- Battery Type
- Maintenance Free
- Battery Capacity
- 12 V/12 Ah
- Suspension Front
- 47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
- Suspension Rear
- Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
- Frame
- Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminum forged mid-structure
Key Specifications
Engine
1252 CC
Mileage
18 kmpl
Power
152 PS
Brakes
Disc
Torque
128 Nm @ 6750 rpm
Transmission
Manual
