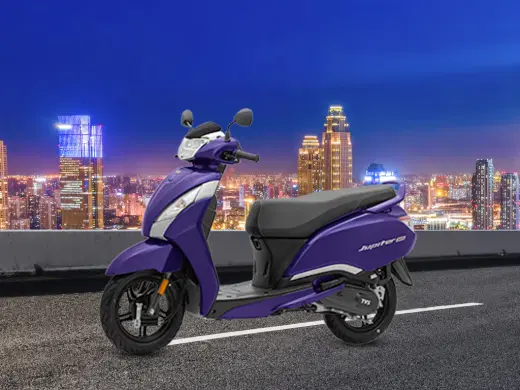

TVS Jupiter 125 Drum

Mileage

57.27 kmpl kmpl

Fuel Tank Capacity

5.1 L

Seat Height

765 mm

Number of Gears

CVT

Max Power

8.15 PS @ 6500 rpm

Displacement

124.8 cc

Front Brake

Drum

Rear Brake

Drum

Body Type

Commuter

Torque

10.5 Nm @ 4500 rpm

Transmission

Automatic

USB Charging Port

Yes

Speedometer

Analogue

Tripmeter

Digital

Odometer

Digital

Seat Type

Single

Passenger Footrest

Yes

Braking Type

Synchronized Braking System

Transmission

Automatic

Engine Type

Single cylinder, 4 stroke, Air cooled

Displacement

124.8

Max Torque

10.5 Nm @ 4500 rpm

No of Cylinders

1

Cooling system

Air Cooled

Starting

Kick and Self Start

Fuel Supply

Fuel Injection

Clutch

CVT

Gear Box

CVT

Bore

53.5 mm

Stroke

55.5 mm

Emission Type

bs6

Mileage

57.27 kmpl

Usb Charging Port

Yes

Speedometer

Analogue

Tripmeter

Digital

Odometer

Digital

Seat Type

Single

Passenger Foot Rest

Yes

Braking Type

Synchronized Braking System

Fuel Gauge

Digital

Engine Kill Switch

Yes

Display

Yes

Body Type

Commuter

Width

681 mm

Length

1852 mm

Height

1168 mm

Fuel Capacity

5.1 L

Saddle Height

765 mm

Ground Clearance

163 mm

Wheelbase

1275 mm

Kerb Weight

108 kg

Head Light

LED

Tail Light

LED

Turn Signal Lamp

LED

Drls

Yes

Front Brake Diameter

130 mm

Rear Brake Diameter

130 mm

Peak Power

8.15 PS @ 6500 rpm

Drive Type

Belt Drive

Battery Type

MF

Battery Capacity

12 V / 4 Ah

Suspension Front

Telescopic Hydraulic

Suspension Rear

Monotube Inverted Gas filled shox (MIG) with Spring aid 3 step adjustable

Brakes Front

Drum

Brakes Rear

Drum

Tyre Size

Front :-90/90 -12, Rear :- 90/90 -12

Wheel Size

Front :-304.8 mm, Rear :-304.8 mm

Wheels Type

SMW

Frame

High Rigidity Under Bone Type

Tubeless Tyre

Tubeless

Air Filter Type - Paper Filter, Seat Length - 790 mm, Front Leg Space - 380 mm, Silent Start, Glove Box in Front 2 L, Body Balacnce Technology, All In One Lock, Boot Light, ETFi Technology, TVS Intelligo Technology, UB Light Provision, Intelligent Milleage Indicators
