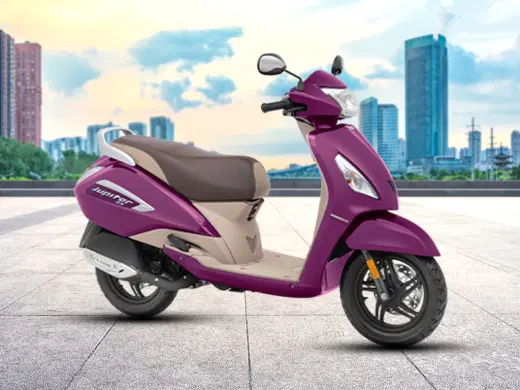

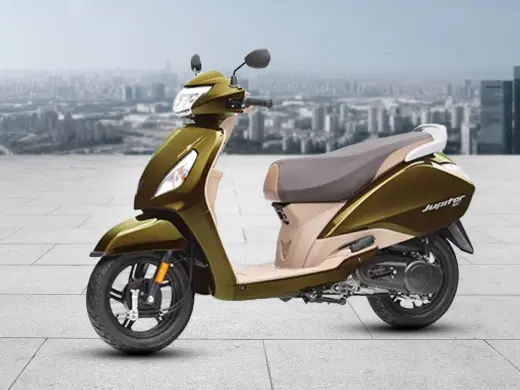

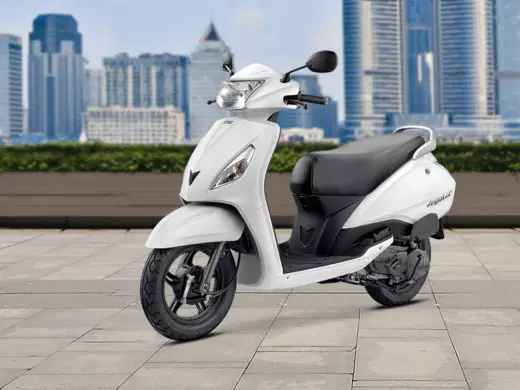

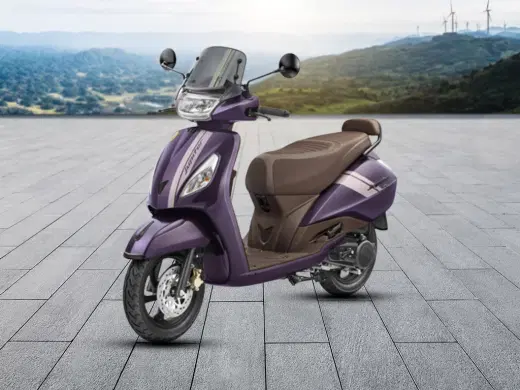

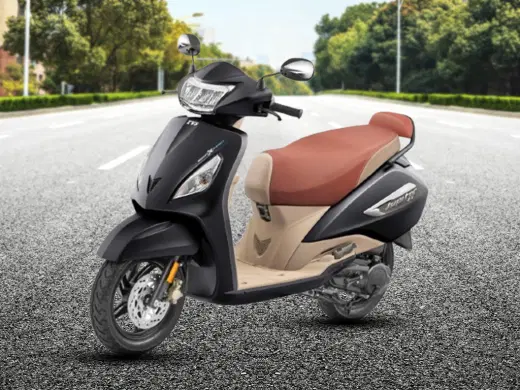

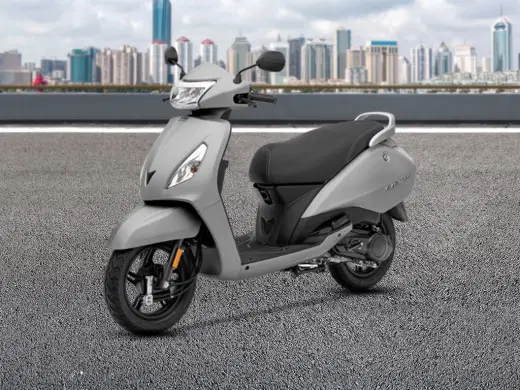

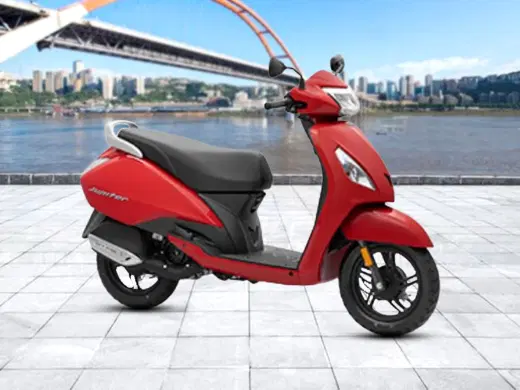

TVS Jupiter STD

Mileage

50 kmpl kmpl

Fuel Tank Capacity

6 L

Number of Gears

CVT

Max Power

7.88 PS @ 7500 rpm

Displacement

109.7 cc

Front Brake

Drum

Rear Brake

Drum

Body Type

Commuter

Torque

8.8 Nm @ 5500 rpm

Transmission

Automatic

Speedometer

Analogue

Tripmeter

Analogue

Odometer

Analogue

Seat Type

Single

Passenger Footrest

Yes

Braking Type

Synchronized Braking System

Transmission

Automatic

Engine Type

Single cylinder, 4 stroke, CVTi, fuel injection

Displacement

109.7

Max Torque

8.8 Nm @ 5500 rpm

No of Cylinders

1

Cooling system

Air Cooled

Valve per Cylinder

2

Starting

Kick and Self Start

Fuel Supply

Fuel Injection

Clutch

Automatic

Gear Box

CVT

Bore

53.5 mm

Stroke

48.8 mm

Emission Type

bs6

Mileage

50 kmpl

Speedometer

Analogue

Tripmeter

Analogue

Odometer

Analogue

Seat Type

Single

Passenger Foot Rest

Yes

Braking Type

Synchronized Braking System

Fuel Gauge

Analog

Engine Kill Switch

Yes

Body Type

Commuter

Width

650 mm

Length

1834 mm

Height

1115 mm

Fuel Capacity

6 L

Ground Clearance

163 mm

Wheelbase

1275 mm

Kerb Weight

107 kg

Head Light

LED

Tail Light

Bulb

Turn Signal Lamp

Bulb

Front Brake Diameter

130 mm

Rear Brake Diameter

130 mm

Peak Power

7.88 PS @ 7500 rpm

Drive Type

Belt Drive

Battery Type

Maintenance Free

Battery Capacity

12 V / 4 Ah

Suspension Front

Telescopic Hydraulic

Suspension Rear

3 step adjustable type coil spring with hydraulic damper

Brakes Front

Drum

Brakes Rear

Drum

Tyre Size

Front :- 90/90 - 12,  Rear :- 90/90 - 12

Wheel Size

Front :-304.8 mm,Rear :-304.8 mm

Wheels Type

Alloy

Frame

High Rigidity Underbone Type

Tubeless Tyre

Tubeless

Air Filter Type - Viscous Paper Filter, ETFi, Econometer, Intelligent Ignition System, Least Turning Radius, Leg Space - 375 mm, All in One Lock, Safe Box Under Seat, Foldable Mirrors, Front Utility Box, Malfunction Indicator Lamps, Parking Brake
